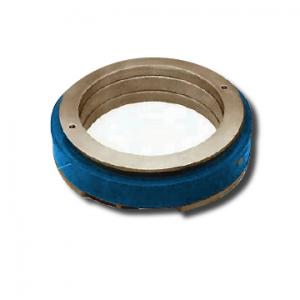

MillMaster Annular Load Cell

Model #TWVLSG-141R

TWS annular load cells are strain gage technology sensors used to measure the roll force in rolling mills under harsh environments.
The TWS load cell strain gage technology uses DC excitation to provide fast responses to the changes of force in the rolling mill.
The shape and the high quality construction of the MillMaster load cells make them highly suited for the metal rolling mills where they are engineered and fitted for measurement and control of roll forces for automatic gage control.
In this application, the load cells are mounted between the nut and the mill housing and do not require removal during back-up roll change. They can also be fitted between the thrust bearing and the top back-up roll.
The TWS load cells interface with the DSP2000S digital signal processor to offer the fastest response available. The DSP2000S allows for a wide variety of features to meet each mill's specific requirements.
MillMaster annular load cells are easily and economically retrofitted into any existing mill.

See brochure for more details, capacities and dimensions. Please contact TWS for a price quote.
